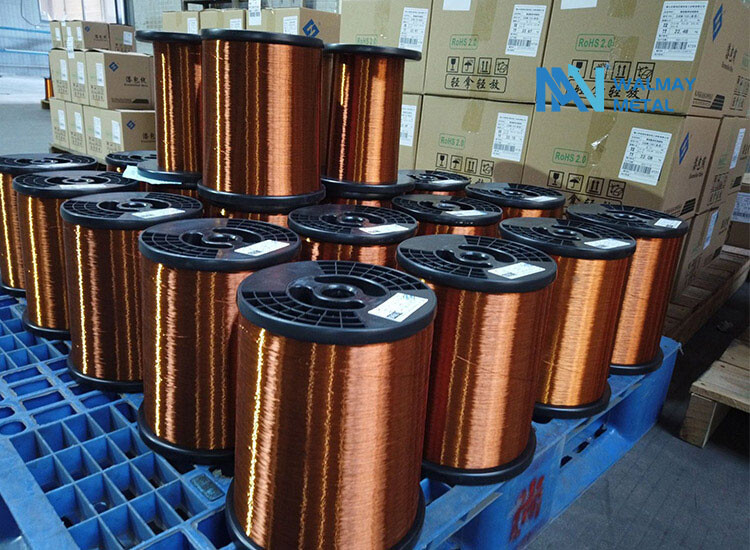

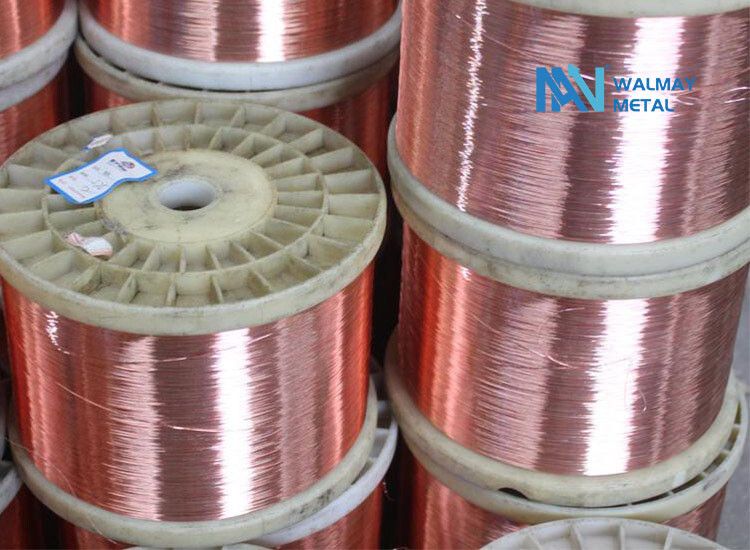

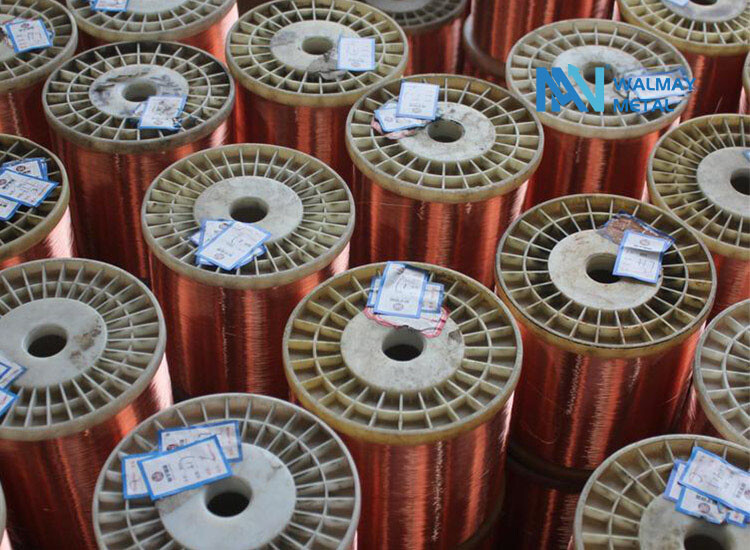

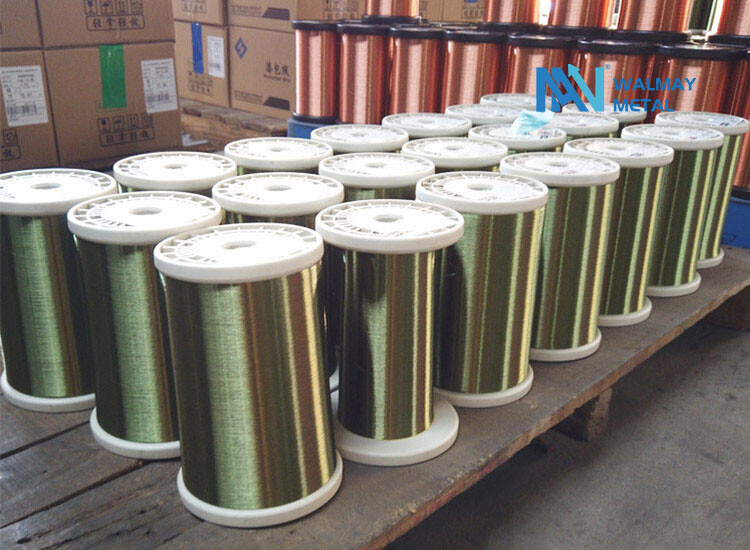

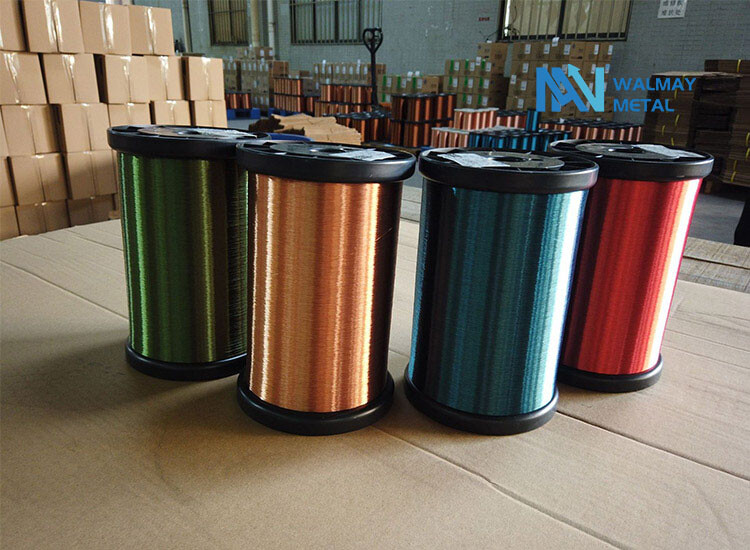

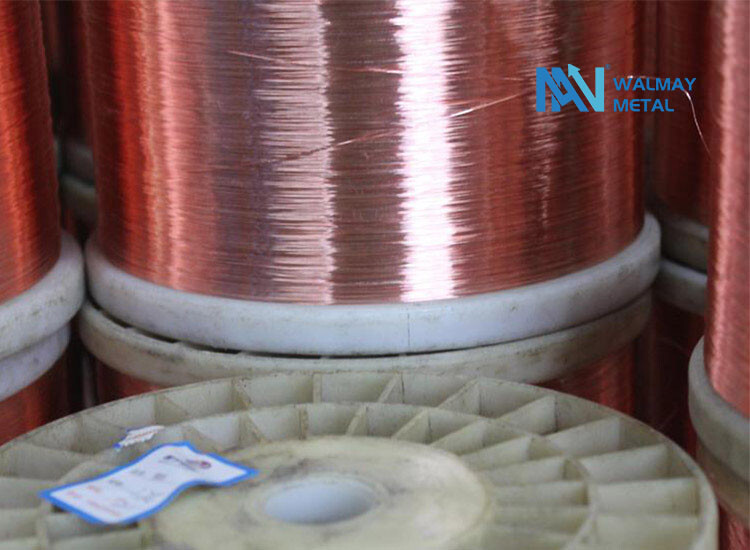

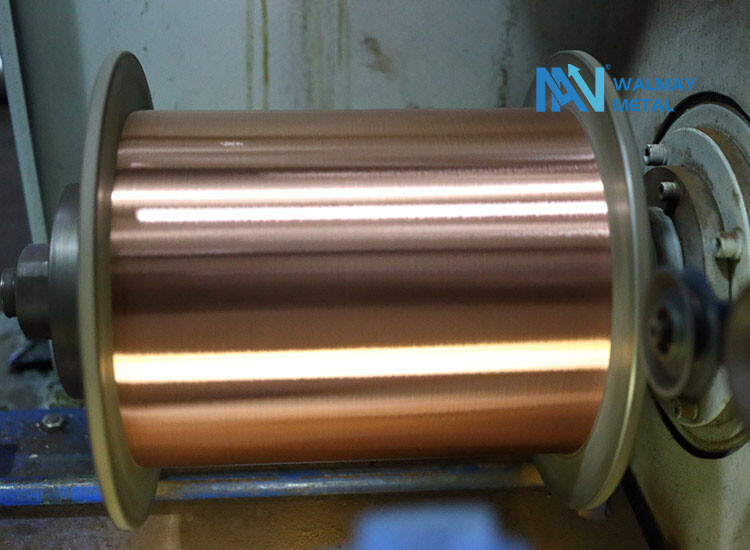

15A Enameled Copper Clad Aluminum Wire

1. Competitive price and quality from our own factory
2. Approved by ISO9001, CE, SGS every year
3. Best service with 24 Hour's reply
4. Flexible payment with T/T,L/C
5. Smooth production ability(50000tons/month)
6. Quick delivery and standard exporting package
7. OEM/ODM

Inquiry

E-mail

Product Details

Product name	copper clad aluminum enameled wire
METAL	Copper	Aluminium Al 99.5	CCA10%	CCA15%	CCA20%
			Copper Clad	Copper Clad Aluminum	Copper Clad Aluminum
			Aluminum
Diameters available[mm]Min -Max	0.03mm-2.50mm	0.10mm-5.50mm	0.05mm-8.00mm	0.05mm-8.00mm	0.05mm-8.00mm

Density[g/cm³]	8.93	2.7	3.3	3.63	4
Conductivity[S/m*106]	58.5	35.85	36.46	37.37	39.64
IACS[%]Nom	101	62	63	65	69
Elongation (1)[%]Nom	25	20	15	16	17
Tensile strength (1)[N/mm²]Nom	260	110	130	150	160
Flex Life (2)[%]Nom 100%=Cu	100	20	50	80
Outer metal by volume[%]Nom	——	——	8-12	13-17	18-22
Outer metal by weight[%]Nom	——	——	28-32	36-40	47-52
Features of copper clad aluminum enameled wire:	1. DC resistivity is about 1.45 times that of pure copper wire; 2. The weight of copper clad aluminum wire is about 1/2 of that of pure copper wire. 　　 3. It has the same solderability as pure copper wire.
Application areas of copper clad aluminum enameled wire:	1. High-frequency transformers, ordinary transformers; 　　 2. Inductors, electromagnetic coils; 　　 3. Motors, including household motors, various micro motors, compressors and other motors with high environmental requirements; 　　 4. Special electromagnetic wires for audio coils and optical drives; 　　 5. Electromagnetic wires for display deflection coils; 　　 6. Electromagnetic wires for degaussing coils。
